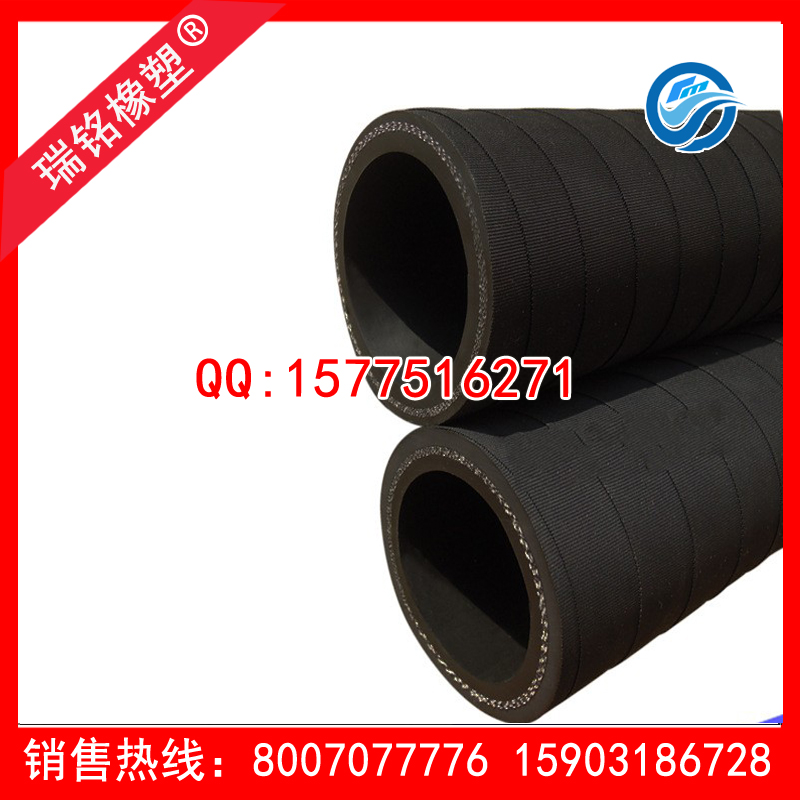

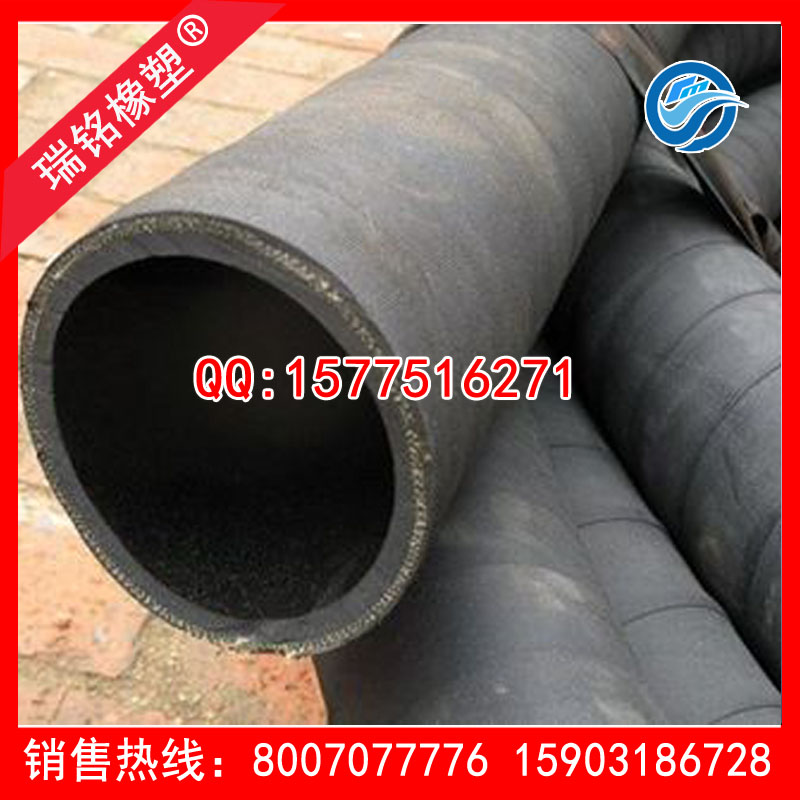

結構：軟管由一層耐油合成橡膠，一層由單層或多層布或編織的紡織纖維與適當?shù)墓荏w銅絲蛔旋線構成的增強層和一層耐油耐候合成橡膠外交層所組成
用途：適用于低壓和真空，使用石油基液壓油，溫度范圍為-40攝氏度～+100攝氏度的軟管
|
Product Name 產品名稱 |
Oil suction and discharge hose
低壓油管 |
|||||||||||
|
Application 應用 |
Handle petroleum products up to 50% aromatics 處理芳香烴含量高達50%的石油產品 |
|||||||||||
|
Temperature Available 溫度范圍 |
From -20 ℃To 120 ℃ -20 ℃ 至 120 ℃ |
|||||||||||
|
Reference standard 參考標準 |
HG/T 2540-93 |
|||||||||||
|
Color 顏色 |
Black or as your order 黑色或根據要求訂做 |
|||||||||||
|
Inside Diameter 內徑 |
Outside Diameter 外徑 |
Wall thickness 壁厚 |
Working Pressure 工作壓力 |
Bending Radius 彎曲半徑 |
Weight 重量 |
Length 長度 |
||||||
|
inch |
mm |
inch |
mm |
mm |
PSI |
bar |
inch |
mm |
lbs/ft |
kg/m |
feet |
m |
|
2 |
51 |
2.7 |
69 |
9 |
225 |
15 |
14 |
350 |
1.9 |
2.8 |
164 |
50 |
|
3 |
76 |
3.8 |
97 |
10.5 |
225 |
15 |
18 |
450 |
2.9 |
4.3 |
164 |
50 |
|
4 |
102 |
5.1 |
129 |
13.5 |
225 |
15 |
24 |
600 |
5.1 |
7.6 |
164 |
50 |
|
6 |
152 |
7.2 |
182 |
15 |
225 |
15 |
34 |
850 |
9.5 |
14.2 |
164 |
50 |
|
8 |
203 |
9.5 |
241 |
19 |
225 |
15 |
44 |
1,100 |
15.0 |
22.3 |
98 |
30 |
|
10 |
254 |
12.1 |
308 |
27 |
225 |
15 |
54 |
1,350 |
29.0 |
43.2 |
38.7 |
11.8 |
|
12 |
305 |
14.2 |
361 |
28 |
225 |
15 |
64 |
1,600 |
35.0 |
52.1 |
38.7 |
11.8 |
|
NOTE: Other parameters are by your requirements. |
||||||||||||
|
Product Name 產品名稱 |
Oil suction and discharge hose
低壓油管 |
|||||||||||
|
Application 應用 |
Handle petroleum products up to 50% aromatics 處理芳香烴含量高達50%的石油產品 |
|||||||||||
|
Temperature Available 溫度范圍 |
From -20 ℃To 120 ℃ -20 ℃ 至 120 ℃ |
|||||||||||
|
Reference standard 參考標準 |
HG/T 2540-93 |
|||||||||||
|
Color 顏色 |
Black or as your order 黑色或根據要求訂做 |
|||||||||||
|
Inside Diameter 內徑 |
Outside Diameter 外徑 |
Wall thickness 壁厚 |
Working Pressure 工作壓力 |
Bending Radius 彎曲半徑 |
Weight 重量 |
Length 長度 |
||||||
|
inch |
mm |
inch |
mm |
mm |
PSI |
bar |
inch |
mm |
lbs/ft |
kg/m |
feet |
m |
|
2 |
51 |
2.7 |
69 |
9 |
225 |
15 |
14 |
350 |
1.9 |
2.8 |
164 |
50 |
|
3 |
76 |
3.8 |
97 |
10.5 |
225 |
15 |
18 |
450 |
2.9 |
4.3 |
164 |
50 |
|
4 |
102 |
5.1 |
129 |
13.5 |
225 |
15 |
24 |
600 |
5.1 |
7.6 |
164 |
50 |
|
6 |
152 |
7.2 |
182 |
15 |
225 |
15 |
34 |
850 |
9.5 |
14.2 |
164 |
50 |
|
8 |
203 |
9.5 |
241 |
19 |
225 |
15 |
44 |
1,100 |
15.0 |
22.3 |
98 |
30 |
|
10 |
254 |
12.1 |
308 |
27 |
225 |
15 |
54 |
1,350 |
29.0 |
43.2 |
38.7 |
11.8 |
|
12 |
305 |
14.2 |
361 |
28 |
225 |
15 |
64 |
1,600 |
35.0 |
52.1 |
38.7 |
11.8 |
|
NOTE: Other parameters are by your requirements. |
||||||||||||
